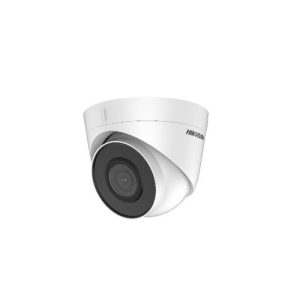

PRAMA 4 MP IP CCTV DOME CAMERA

4MP IR Fixed Turret Camera
• 1/3-inch Progressive Scan CMOS
• 2560 × 1440@20fps
• 2.8 mm/4 mm/6 mm fixed lens
• H.265, H.265+, H.264, H.264+
• Three streams
• 120dB WDR
• BLC/3D DNR/ROI/HLC
• Up to 40 m IR range
• PoE (Power over Ethernet)
• IP67
• 2 Behavior Analysis

SKU: IMP000211 Categories: ,

Description

  • Focal Length 2.8 mm, 4 mm, 6 mm
  • Focus No
  • FOV”“2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
  • 6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 58°”
  • Lens MountM12
  • IR Range Up to 40 m
  • Wavelength850 nm
  • Video Compression “Main stream: H.265/H.264
  • Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264”
  • 264 Type Baseline Profile/Main Profile/High Profile
  • 264+Main stream supports
  • 265 Type Main Profile
  • 265+Main stream supports
  • Video Bit Rate32 Kbps to 8 Mbps
  • Resolution2560 × 1440
  • Main Stream Max. Frame Rate“50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
  • 60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)”
  • Sub-stream Max. Frame Rate“50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
  • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)”
  • Third Stream Max. Frame Rate“50Hz: 1fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240, 320 x240)
  • 60Hz: 1fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240, 320 x240)”
  • Image Enhancement BLC, 3D DNR, HLC
  • Image Settings “Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by software or
  • Web browser”
  • Day/Night Switch Auto, scheduled
  • Network Storage NAS (NFS, SMB/CIFS)
  • Alarm Trigger Motion detection, video tampering alarm, illegal login
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Firmware Version5.5.3
  • APIISAPI
  • Simultaneous Live View Up to 6 channels
  • User/Host “Up to 32 users
  • 3 levels: Administrator, Operator and User”
  • Software PRAMA VMS Standard, PRAMA-ONLINE
  • Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Operating Conditions-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95 % or less (non-condensing)
  • Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
  • Power Consumption and Current“12 VDC, 0.4 A, max: 5 W
  • PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W”
  • Ingress Protection“IP67
  • TVS 2000V lightning protection, surge protection and voltage transient protection”
  • Material Metal & Plastic
  • Dimensions “Camera: Ø 110 mm × 93.2 mm ( 4.3inch × 3.7inch)
  • With package: 150 mm × 150 mm × 141 mm (5.9inch × 5.9inch × 5.6inch)”
  • Weight “Camera: approx. 350 g (0.8 lb.)
  • With package: approx. 610 g (1.3 lb.)”
